The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Technical data
Total dynamic head
max 40 ft
Flow rate
max. 78 USG/min
Vmp*
> 68 V
Voc
max. 150 V

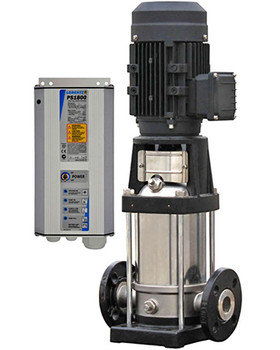

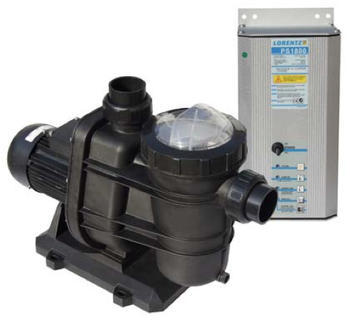

Components
Controller: PS600
Controlling and monitoring
Control inputs for dry running protection, remote control etc.
Protected against reverse polarity, overload and overtemperature
Integrated MPPT (Maximum Power Point Tracker)
Low voltage disconnect for battery operation
Motor: ECDRIVE 600 CS-17
Maintenance-free brushless DC motor No electronics in the motor
Applications
