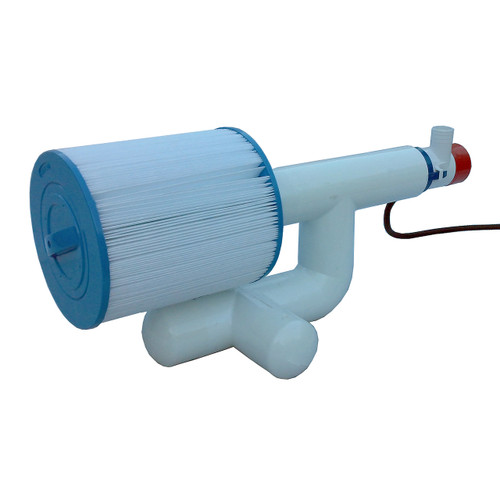

Bottom Feeder 15000 Gallon Pool or Spa Solar Pump and Filter System

The patent pending Bottom Feeder Pool Filter is needed because of the overwhelming expense you're spending on pumping and filtering your swimming pool water. The Bottom Feeder Pool Filter isn't just different; it's a better way to filter your pool or spa. The Bottom Feeder finally gives you an opportunity to turn off your inefficient, noisy, and expensive to operate pool equipment... and it reduces your pollution which is better for our planet. The Bottom Feeder Pool Filter uses the energy from the sun to pump up to 15,000 gallons a day through (3) three reusable 20 micron filter cartridges. The Bottom Feeder Pool Filter is EASY and requires less maintenance than your existing pool filter.

Product Features:

- This Pump and Filter System pays you to own it, from $1.00 to $5.00 EVERY SINGLE DAY!
- Pool, Spa and Water pump and filter system that SAVES ENERGY and MONEY!
- Pumps and Filters up to 15,000 gallons per day through 3 reusable 20 micron filter cartridges
- Easy installation
- Zero Energy Cost
- Noise-Free Operation
- Alternative Pump and Filter System
- Maintains family-safe water quality
- Pays for itself in just months
- One year limited warranty
- Made in the USA

Product Details

Patent Pending | Natural Current LLC | Michael Evingham | Dana Point, CA | USA

Pump and Filter System Size: 17 ½ W x 17 ½ L x 25 ½ H inches
Pump and Filter System Weight: 33 lbs.
Pump and Filter System Body Type: Polyvinyl Chloride

Filter Media: 216 pleat count, 3-ounce reemay 2033; 20 micron cartridges
Filter System Effective Filtration Area (Sq Ft): 156 square feet

<

Pump Flow Rate: 15,000-Gallon-Per-Day(GPD)
Pump Flow Rate: 1,500-Gallon-Per-Hour (GPH)
Pump Flow Rate: 25 Gallon-Per-Minute (GPM)
Pump Maximum Head: 10 Feet
Pump Hose Outlet (In.) : 1 1/8
Pump Maximum water Temperature: 104 Degrees F
Pump Typical Life: 2500 hours | 6 Hours a day = 416 days |
Pump New Replacment kit cost: $75.00 FOB
Pump Voltage: 12
Pump Amps: 4.8
Pump Shaft Material: Stainless Steel
Pump Certifications: UL, CE and ISO 8849

Solar Panel: Solar 125 watt, 12 volts, 7.11 Amp Policrystalline Silicon
Solar Panel Operating temperature: -40 to + 85 ºC / - 40 to + 185 ºF
Solar Panel: Dimensions: 57.7 " x 26 " x 1.97 " / 1466mm x 660mm x 50mm
Solar Panel: Weight: 26.51 lb / 12kg
Solar Panel Front glass: 3.2mm tempered
Solar Panel Junction Box: IP-65 rated
Solar Panel Cable lengths: 3 ( ft )
Solar Panel Frame: Anodized aluminum alloy type 6063 - T5
Solar Panel Max Load: 5400Pa
Solar Panel Mounting System: Solar Panel Z Style Flat Mounting Included
Solar Panel UL Certified : E330673
Solar Panel TUV : 0000022551
Solar Panel IEC: C1-ASN07001
Solar Panel ETL : 4001057

Solar Power Cord: 50FT 12 AWG Extension Wires w/ MC4 Connectors

Power Cable made of electron-beam cross-linked insulation and coating; high resistance against heat, cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire; low smoke, halogen free, flame free, flame retardant; flexible, easy to strip, very low space requirement, extremely mechanically robust, very long lifetime.

MC4 Connectors:
Nominal Voltage: 600 V DC
Temperature rating: 90C, 194F 12 AWG
Reference Standard: UL 4703
Electron-beam cross-linked compounds
Insulation thickness 1.22 mm, 0.048in Insulation: 90 XLPE, black
Jacket thickness 0.8mm, 0.032in 90 XLPE, black or white

Photovoltaic Combiner, breakers and DC Ground Fault Protector Box.
Photovoltaic combiner: Compliance with NEC requirements
Photovoltaic combiner: ETL listed for use in the U.S. and Canada.
Photovoltaic combiner: Mount Type: Wall
Photovoltaic combiner: Enclosure Type: Injection molded insulating
Photovoltaic combiner: Deadfront under aluminum flip-up exterior cover
Photovoltaic combiner: Material Type: Rainproof NEMA 3R aluminum enclosure
Photovoltaic combiner: Dimensions: 10 1/2 L x 5 W x 3 1/2 H (in.)
Photovoltaic combiner: Manufacturer Warranty: 5 year limited warranty
Photovoltaic combiner: Ship Weight: 2.5 lbs

DC Circuit Breaker: Can also work as on-off switch for DC load circuits
DC Circuit Breaker: Class Rating Meets NEC requirements
DC Circuit Breaker: Amps: 12
DC Circuit Breaker: Manufacturer Warranty: 5 year limited warranty

DC Ground Fault Protector: (GFI - UL listed breaker assy)
DC Ground Fault Protector: Solar 63 amp DC ground fault protector
DC Ground Fault Protector: UL listed
DC Ground Fault Protector: NEC2008 requires DC-GFP in ALL installations.

Bottom Feeder 1500 - Solar - Pump and Filter System

Bottom Feeder 1500 Solar item model number: NCSBF15K
Bottom Feeder 1500 Solar UPC #: 091037434456

 Product Features:

• The Savior pays you to own it, from $1.00 to $5.00 every single day
• No plumbing, no electrical hook-ups, and no energy consumption
• ZERO Cost, Noise, Energy, Pollution, Batteries or Carbon Footprint
• 100% solar powered with wind, battery and 110v Hybrid options
• As electrical costs go up the Savior system becomes more valuable
• Require less chemicals which is better for the water & environment
• Saves the environment by reducing the emissions of power plants
• Portable, Submersible, Floating, Solar Pump and Filtration System
• Take your swimming pool pump off the grid – with solar power!
• Takes up to 15,000 pounds of pollution out of the air every year
• Solar powered from sunup to sundown, runs in cloudy weather
• No batteries are required to operate (No battery maintenance)
• Conventional pumps consuming 25% of all electricity at home
• Ideal for anyone wishing to save money on their electric bills
• $0 monthly cost for the Homeowner to filter their pool water
• The Savior pays for itself in a relatively short period of time
• Conventional pumps are home’s leading user of electricity
• Saves the homeowner on average $700 to $1500 annually
• Works well with all types of pool water treatment systems
• The only pool pump and filter system that pays you back
• Replacement filter cartridge average cost $30 +shipping
• Replacement pump motor average cost $25 +shipping
• Reduce your stress about maintaining your pool water
• Use the power of the sun to clean your pool for Free
• Investment return increases as electricity rates rise
• Build value while saving money for your household
• Emergency power source for your home and family
• Replace that AC pump with a solar-powered pump
• No more loud pool pumps to hear. Runs silently
• No more messy dirty filters to clean or pay for
• Filters water better than conventional systems
• Fight pollution. Reduce your carbon footprint
• Virtually silent while it pumping and filtering
• Saves up to 100% on your pool electricity bill
• Residential and commercial systems available
• Works for all pool sizes and salt water pools
• May be eligible for a 30% Federal Tax Credit
• Reduces the homeowner’s carbon footprint
• Pumps and filters your pool free of charge
• Pump motor life expectancy 1 to 2 years
• Filter cartridge life expectancy 3 years
• Can pays for itself in just months
• Drastically improves water clarity
• Guaranteed return on investment
• Reduce your energy consumption
• Reduces your carbon footprint
• Very low maintenance system
• Solar Pool Filtering Systems
• Perfect for remote locations
• Completely off grid system
• Reduces dependence on oil
• One year limited warranty
• Quick break even time
• Helps the environment
• No batteries required
• 100% Solar Powered
• Fights pollution
• No installation
• Quiet operation
• Zero emissions
• Made in the U.S.A.
