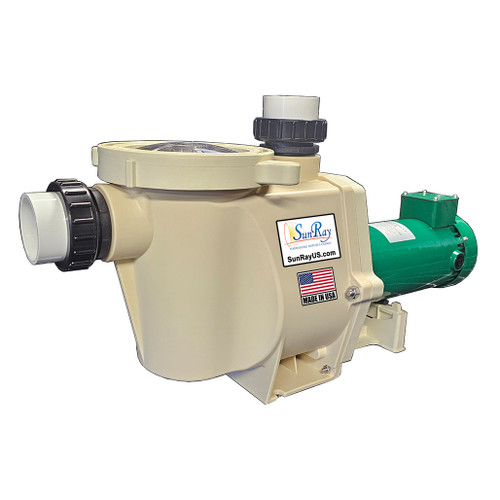

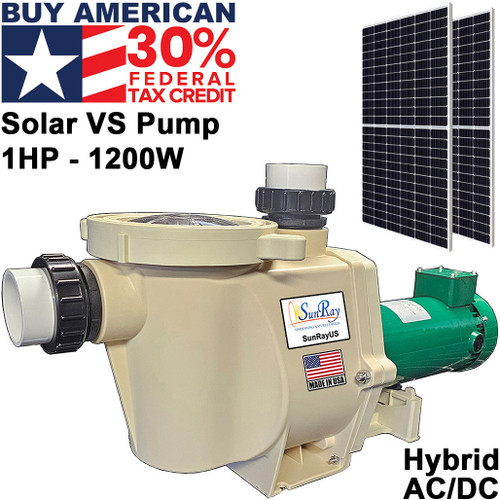

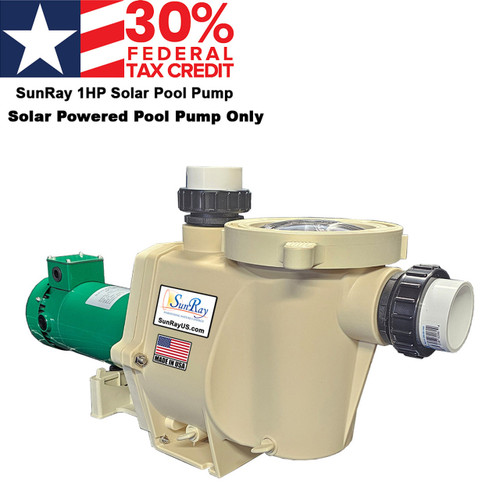

SunRay SolFlo Solar Variable Speed Pool Pump Sun Powered by SunRay

The SunRay Variable Speed Solar-Powered Pool Pump is recommended for use with a 25,000- to 100,000-gallon swimming pool or pond. Like the other products in the SolFlo line, this system is designed to be off the grid, effectively moving water using solar power. It includes the very efficient and reliable Sensorless Brushless DC Motor. Purchase with (2) to(16) 30-Volt solar panels wired in series to pump up to 115 gallons per minute.

Key Features:

• Solar-powered system saves energy costs and reduces pollution
• Ideal for bodies of water 25,000-100,000 gallons
• Efficient and reliable Sensorless Brushless DC Motor
• Available in 60-Volt to 480-Volt solar systems, complete with panels

Technical Specifications:

Pump

• Maximum Flow Rate: 115 GPM
• Pressure: 60’ head
• Voltage: 240 VDC

Motor

• Type: Brushless
• Horsepower: 3.5
• DC Voltage Range: 120-240V
• Full Load RPM: 3350
• Efficiency: 90
• Max Load Current: 12.5 amps
• Weight (Pump Only): 20.4 lbs

Solar Pump Controller

• DC Voltage Range: 180-240V
• Current: 12.5

240-Volt Solar System

• Solar Panels: (8) 30-Volt panels
• Volume Filtration: Up to 35,000 gallons

480-Volt  Solar System

• Solar Panels: (16) 30-Volt  panels
• Volume Filtration: Up to 100,000 gallons

Additional Information:

• SolFlo 4 Manual
• SolFlo 4 Motor Specifications
• SolFlo 4 Pump Curve
